| Airflow Direction | : | Upflow |
| Amperage Rating | : | 19.9 to 22.5 A |
| Amps | : | 1.7 |
| Blower Motor HP | : | 1/4 |
| Blower Motor Speeds | : | 3 |
| Blower Motor Type | : | PSC |
| Blower Wheel | : | 10 x 6 |
| CFM Rating | : | 600 cfm |
| CFM | : | 600 |
| Cased | : | Yes |
| Coil Type | : | Slab |
| Cycle/Hertz | : | 60 hz |
| Dimensions | : | 30 in H x 22 in W x 18-3/4 in D |
| Drain Connection Size | : | 3/4 in |
| Drain Connections | : | 3 |
| Filter Size | : | 20 x 20 in |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/4 hp |
| Heat Pump Compatible | : | Yes |
| Heating Capacity | : | 17061 Btu/hr |
| Includes Filter Rack | : | Yes |
| Liquid Line Fitting | : | Sweat |
| Liquid Line Size (OD) | : | 3/8 in |
| Liquid Line Size | : | 3/8 in |
| MBTUH Converted | : | 18 |
| MBTUH | : | 18 |
| Material | : | Aluminum |
| Maximum Pressure (PSI) | : | 640 |
| Metering Device Included | : | Yes |
| Metering Device | : | HP-A/C TXV |
| Motor HP | : | 1/4 |
| Motor Type | : | PSC |
| Mounting Type | : | Wall |
| Nominal Electric Heat (kW) | : | 05 |
| Number of Speeds | : | 3 |
| Phase | : | 1 ph |
| ProdType | : | AHU |
| Product Family | : | S Series |
| Refrigerant Type | : | R-454B |
| Refrigerant | : | R-454B |
| Rotation | : | Counter-Clockwise |
| Series | : | S Series |
| Slab | : | M3 |
| Sound Level | : | 60 dBA |
| Suction Line Fitting | : | Sweat |
| Suction Line Size (OD) | : | 3/4 in |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 1.5 |
| Voltage Rating | : | 208/240 V |
| Warranty Offered | : | Yes |
| Wattage | : | 5 kW |

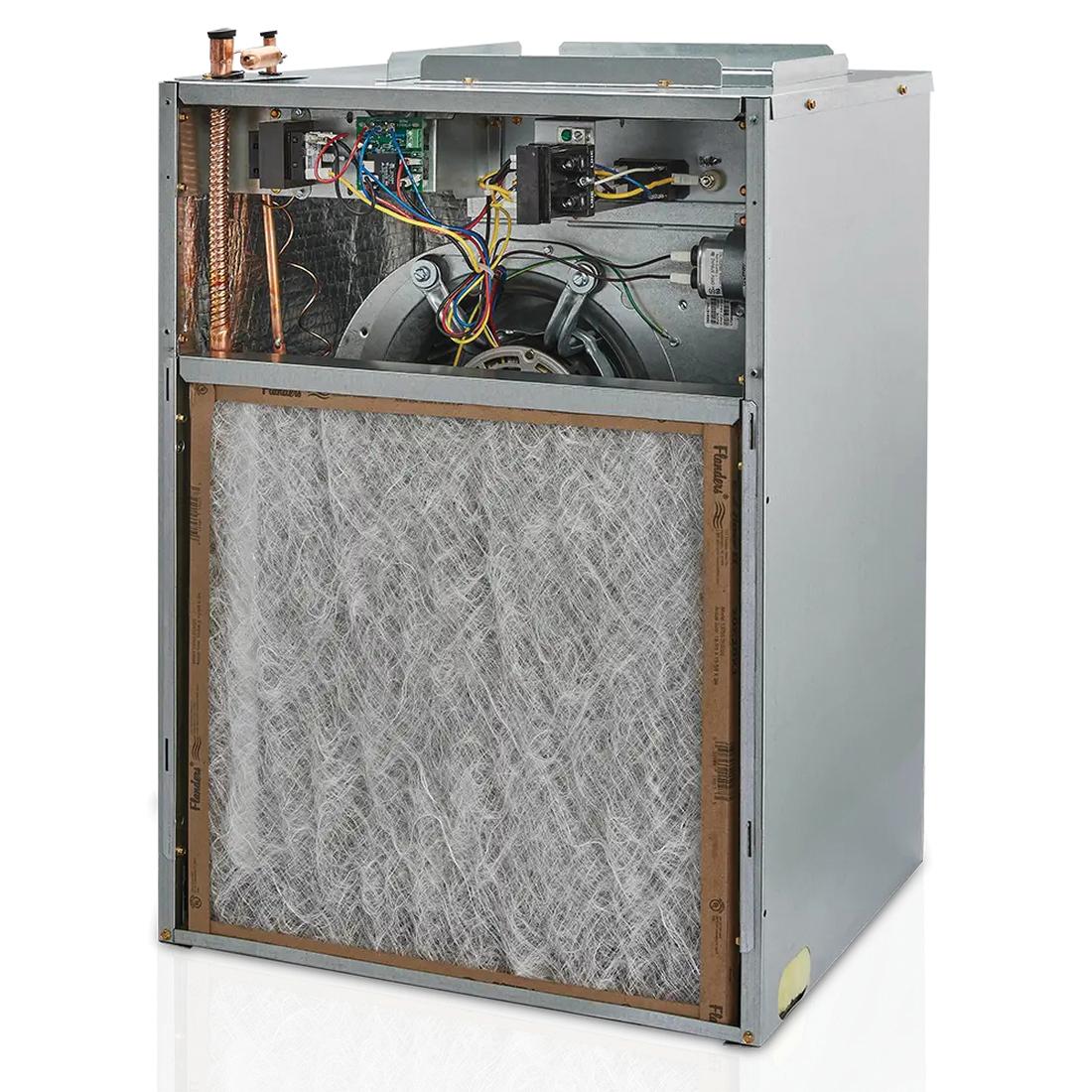

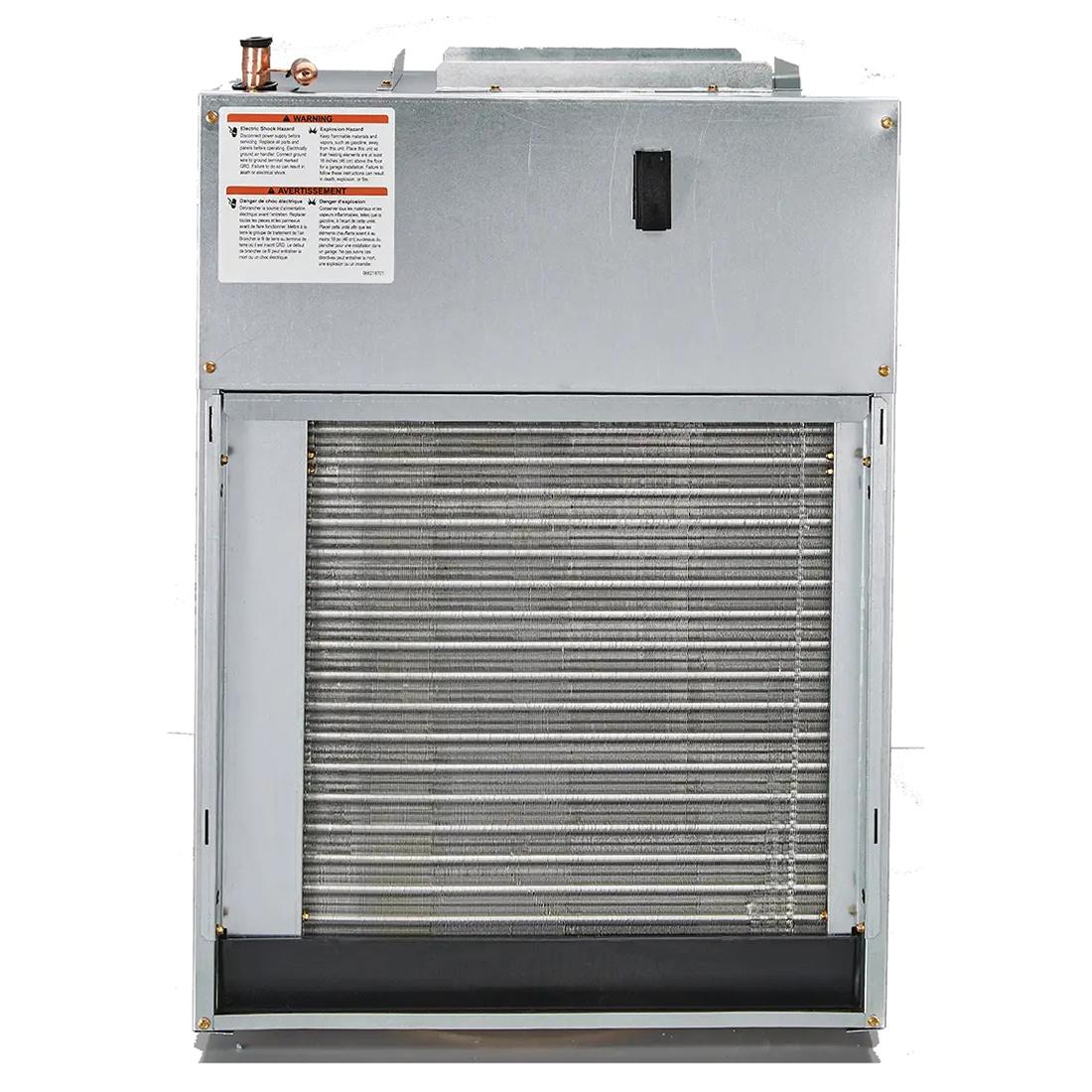

The S Series compact wall mount air handlers are designed to meet the needs of low height and light weight requirements within the multi-family market.
ADP® Compact Air Handler, S Series, 17061 Btu/hr Heating, 208/240 V, 19.9 to 22.5 A, 5 kW Wattage, 1/4 hp, 60 Hz, 1 ph Phase, 600 cfm, R-454B Refrigerant, 60 dBA Sound Level, 3/8 in Liquid Line, 3/4 in Suction Line, 20 x 20 in Filter, 3 Speed, PSC Motor, Wall Mounting, Aluminum, 30 in H x 22 in W x 18-3/4 in D
- Compact wall mount to meet the needs of multi-family market for wall or closet installations
- Compact, lightweight design, at 30" tall and weighing 80 lbs. or less
- Available in copper or aluminum
- PSC or optional 5-speed high efficiency motor: 240/208 V, 60 Hz
- Factory installed electric heat available
- Top refrigerant connections for easy brazing
