| Actual Size | : | 11-3/8 x 23-3/8 x 1-3/4 in |
| Air Flow Capacity | : | 600 cfm, 1000 cfm |
| Depth | : | 2 in |
| Filter Efficiency | : | 30 % |
| Final Resistance | : | 1 in-WG |
| Frame Material | : | Kraft Board |
| Height | : | 24 in |
| Initial Resistance | : | 0.16 in-WG at 300 fpm and 0.3 in-WG at 500 fpm |
| MERV | : | 8 |
| Media Area | : | 5.8 sq-ft |
| Media Material | : | Non-Woven Synthetic |
| Pleats per Linear Feet | : | 10 |
| Rated Velocity | : | 300/500 fpm |
| Series | : | 80085 Series |
| Temperature Rating | : | 160 deg F |
| Width | : | 12 in |

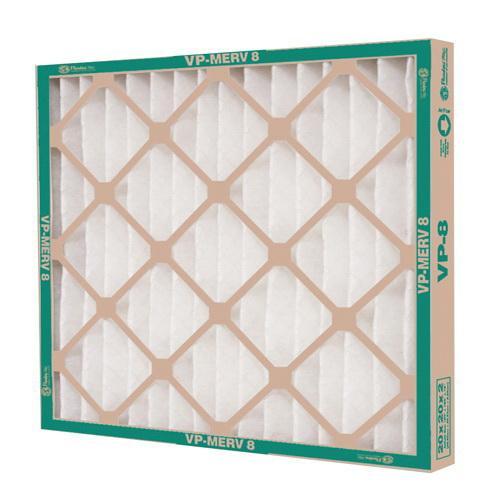

AAF® Pleated Air Filter, 80085 Series, Non-Woven Synthetic Media, Kraft Board Frame, 12 in Width, 24 in Height, 2 in Depth, 8 MERV, 30 % Filter Efficiency, 5.8 sq-ft Media Area, 10 Pleats per Linear Feet, 300/500 fpm Rated Velocity, 0.16 in-WG at 300 fpm and 0.3 in-WG at 500 fpm Initial Resistance, 1 in-WG Final Resistance, 600 cfm, 1000 cfm Air Flow Capacity, 11-3/8 x 23-3/8 x 1-3/4 in Actual, 160 deg F
- The media is supported by an expanded metal continuously laminated on the air leaving side to provide pleat stability while eliminating flutter
- Pleat design is a V-pleat that aids in pressure drop while reducing energy cost and allowing total media usage and providing maximum airflow
- Frame is a two piece construction, made of a heavy-duty 24 point natural kraftboard material
- Diagonal and horizontal support members provide frame strength
- Filter media pack is sealed to eliminate air bypass
- Ecologically advanced filtration medium made entirely from recycled materials
- 100% non-woven synthetic media manufactured from recyclable material
- Diamond shaped expanded metal media support
- Unbleached, natural kraft board frame
