| Color | : | Red/Yellow |
| Material | : | Plastic |
| Number of Conductors | : | 9 |
| Temperature Rating | : | 221 deg F |
| Voltage Rating | : | 600 V |
| Wire Size | : | 22 to 8 AWG |
R/Y + replaces both red and yellow wing style connectors.This simplifies selection of the right connector for a wide range of wiring jobs. There's also less inventory to manage, and a better chance you'll have the connector you need to do every job.

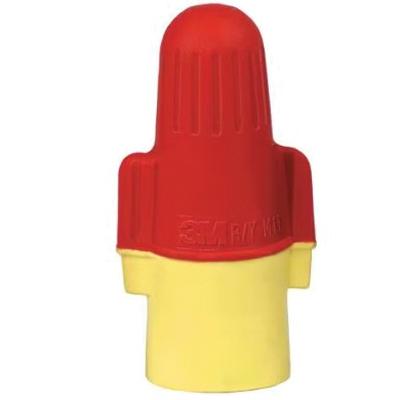

3M™ Performance Plus Wire Connector, 22 to 8 AWG Wire, 600 V, 9 Conductors, Plastic, Red/Yellow, 221 deg F
- Offers a strong bite in a pigtail application for a long-lasting connection
- Great for all types of jobs - from industrial and residential construction, to automotive, marine and appliance applications
- Red/yellow connector is flame-retardant and operates in temperatures up to 221 degrees F (105 degrees C)
- An expandable spring lets you take in more wire uptake and reuse
- The R/Y+ is dual color-coded so this 1 connector replaces your traditional red and yellow connectors
- Use with copper conductors ranging from 22 to 8 AWG
- Built with polypropylene and thermoplastic elastomer material
- Use on building wire rated 600V and on signs, fixtures or luminaires rated 1000V
